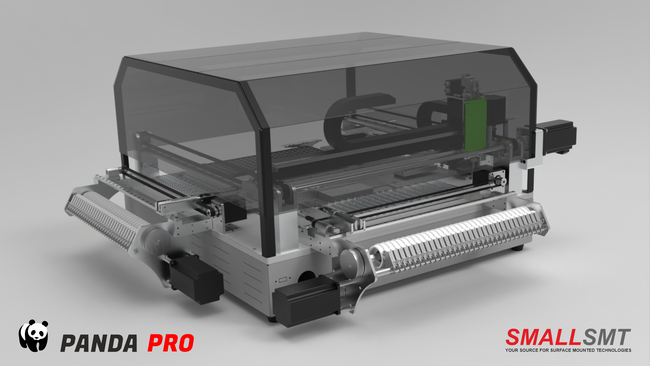

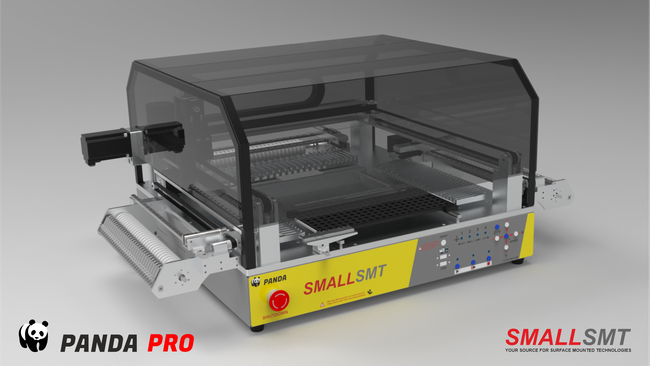

Our new pick and place machine for the entry into SMD placement is called PANDA PRO.
The second version now uses a standard XY system.
This pick and place machine has 2 heads in a row .
You can use a mix of 2 / 6 nozzles.
V2/3 Machine control software for Windows 10 / 11 license free lifetime updates
+ High feeder count included
+ New V3 controller for better performance and 0.01mm resolution
+ Intelligent CAN bus placement head
+ Vacuum system mounted on head for easy maintenance
+ Included firmware upgrade option
+ 1x analog top camera and 2x analog bottom cameras using different magnification
+ size and weight is office friendly!
+ Z-axis sensor tip included
+ stainless steel nozzle seats
+ 6 slot nozzle changer increase speed can use 4 same nozzle at a time
+ 15mm Z axis travel range
+ modular construction easy to access serviceable components
+ need external air pressure supply only
+ Vacuum generators and valves mounted on head for easy access during service
+ Intelligent placement head using embedded controller and CAN Bus for reduced cable count
+ Optional embedded industrial PC
Installed Feeder:
West side: 28x8mm Push feeder
East side: 1x24mm, 4x16mm, 9x12mm, 7x8mm Push feeder
North side: 1x24mm, 5x16mm, 10x12mm, 7x8mm Push feeder
PANDA PRO machine including nozzle changer
JEDEC Tray holder
Working area

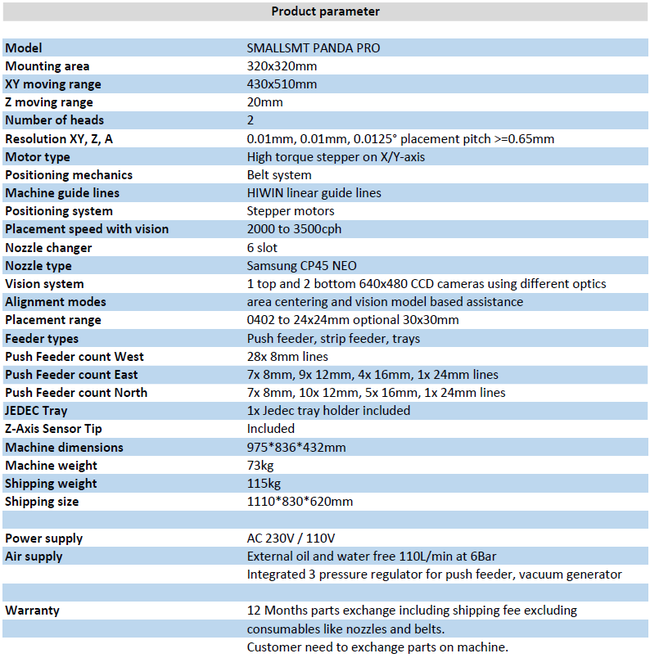

Datasheet
SMALLSMT PANDA PRO
- 2 heads
-
6 slot nozzle changer included
- 42x 8mm Push Feeder
-
19x 12mm Push feeder
- 9x 16mm Push feeder
- 2x 24mm Push feeder
- Up to 320 x 320mm PCB size, 430 x 510mm working are, 20mm Z-axis travel range
- 1x Jedec Tray plus 320x170mm PCB size possible
- Z axis sensor included
- machine cover included
- 2x Analog bottom cameras plus 1x Analog Top camera
- Bottom camera 1 align up to 12x12mm parts
- Bottom camera 2 align up to 24x24mm parts area depending on lens type
- USB video digitizer
- Tool set
- V2/3 Machine control software for Windows 10 / 11 license free lifetime updates
$4,399.00
Final price excl. shipping costs
- 97 kg
- Available
- Ships within 3-5 weeks1
We offer additional software PNP-Creator to improve project editing workflow and data storage plus reporting system.
Dot-Maker is used to create dot patterns based on GERBER data for paste coverage and glue dispensing. The final coordinate file get imported in V2 software to execute.
Cut strip feeder block using 9x 8mm, 7x 12mm, 2x 16mm feeder lines (standard)
Can get customized too!
