In this section you find parts to upgrade your machine

The first project is printing a headcover for 4 head machines

PNP head pick and place head

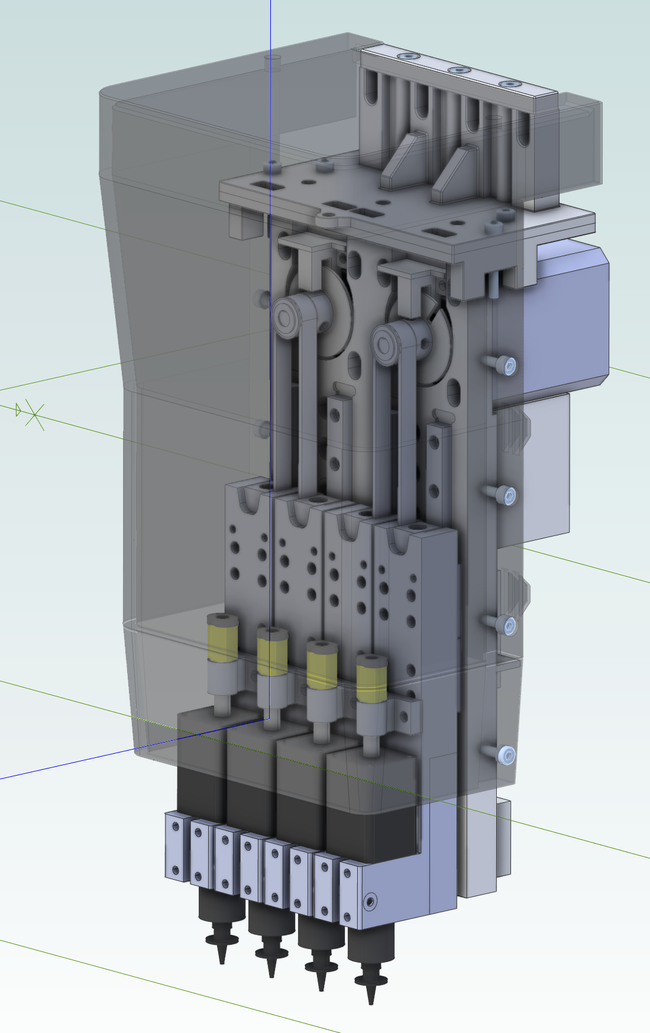

SMALLSMT 4 Head machine head cover

Head cover is done by printing 4 parts.

The shield and 2pcs used to build cable guide plus top bar to fix cables and tubes.

Download
cableguideV3.stl
exe File 47.0 MB
Download
bottom part for old head using Z axis end switch for each head
gliderV3.stl
exe File 2.4 MB
Download
bottom part for new head using disc plates as end switch
gliderV3N.stl
exe File 1.8 MB
Download
headshieldv3.stl
exe File 3.3 MB
Download
lockbar.stl
exe File 25.6 MB
