We offer high quality electric CL Feeder in different sizes.
Spare parts are availiable.
We offer discount if you order more feeders:
>= 10 pcs 3%,
>= 25 pcs 5%,
>= 100pcs 10%
Electrical CL Feeder speed up the PNP processing because the need only 5ms feed time instead of >100ms. This makes a big difference if using 4/8 heads. The head don't need to wait over feeder to pickup same part to other heads. Second advantage is for very small parts you receive no part shaking during feed process.
Space requirements for CL Feeder
All CL feeder bay slots are for 8mm CL feeder designed.
If you need to use all 64 slots only 8mm feeder possible.
For 12 and 16mm wide CL feeder we need 3 slots for the first feeder and 2 slots for each following.
The 24mm CL feedr needs 3 slots.
12 / 16mm CL-Feeder

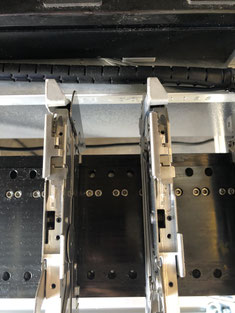

single 12mm between 8mm feeder
need 3 slots
2x 12mm between 8mm feeder
needs 5 slots 3 + 2
24mm CL Feeder

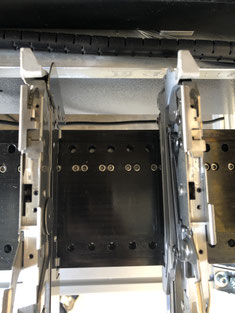

single 24mm between 8mm feeder
need 3 slots
Special for our machines 4x wide slots on CL6X machines
Machine can take up to 4x 24mm feeder without loosing a slot.
VP2800HP-CL6X CL feeder layout example
FC120 CL Feeder Cart offers 120x 8mm wide slots
The new feeder cart offers a stable storage for CL Feeder on a small space.
Feeder bank made from anodized aluminium.
Optional heavy duty rollers allow a movable storage system.
You can add otional 4x heavy duty rollers.
SMALLSMT ELECTRIC CL Feeder 8mm width
SMALLSMT ELECTRIC CL Feeder 8mm width, adjustable feed distance 2,4,6,8,10,12,14,16,18,20,24mm
$165.00
Final price excl. shipping costs
- 1.5 kg
- Available
- Ships within 1-3 days1
SMALLSMT ELECTRIC CL Feeder 12mm width
SMALLSMT ELECTRIC CL Feeder 12mm width, adjustable feed distance 2,4,6,8,10,12,14,16,18,20,24mm
$264.00
Final price excl. shipping costs
- 2 kg
- Available
- Ships within 1-3 days1
SMALLSMT ELECTRIC CL Feeder 16mm width
SMALLSMT ELECTRIC CL Feeder 16mm width, adjustable feed distance 2,4,6,8,10,12,14,16,18,20,24mm
$264.00
Final price excl. shipping costs
- 2 kg
- Available
- Ships within 1-3 days1

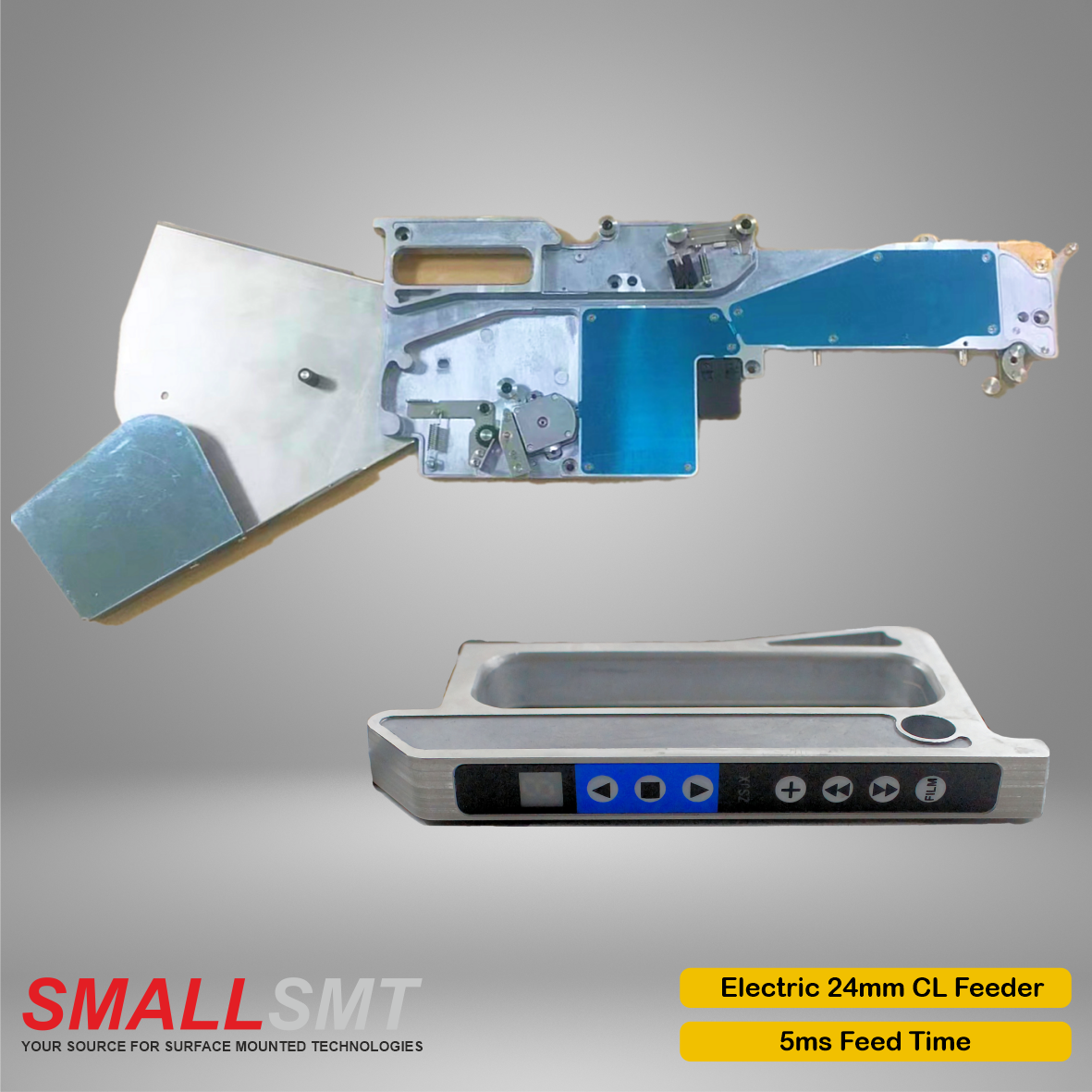

SMALLSMT ELECTRIC CL Feeder 24mm width
SMALLSMT ELECTRIC CL Feeder 24mm width, adjustable feed distance 2,4,6,8,10,12,14,16,18,20,24mm
$404.00
Final price excl. shipping costs
- 2.5 kg
- Available
- Ships within 1-3 days1
SMALLSMT ELECTRIC CL Feeder 36mm width
SMALLSMT ELECTRIC CL Feeder 36mm width, adjustable feed distance 2,4,6,8,10,12,14,16,18,20,24mm
$619.00
Final price excl. shipping costs
- 3 kg
- Available
- Ships within 1-3 days1
SMALLSMT ELECTRIC CL Feeder 44mm width
SMALLSMT ELECTRIC CL Feeder 36mm width, adjustable feed distance 2,4,6,8,10,12,14,16,18,20,24mm
$855.00
Final price excl. shipping costs
- 3 kg
- Available
- Ships within 1-3 days1
